A Paper Bridge: Try a Fair Test at Home Without a Science Kit

Breakfast is cleared, two books are still on the table, and someone bends a scrap of paper into a little bridge. Another child wants to see whether it can hold something. You could start looking for a science kit, or you could turn that question into a small investigation with the paper already in the drawer.

The useful part is not building the most impressive bridge. It is arranging a comparison that lets your family say what happened, what stayed the same, and what remains uncertain. A short session can end with a few observations rather than a model that needs a permanent shelf.

Choose one question small enough for today

Try this question: With the same starting paper and support gap, how do three paper shapes compare when we add matching loads? You will compare a flat sheet, a shallow channel, and an accordion fold. Keep decoration, extra layers, tape, and taller towers for another day.

The Exploratorium’s paper bridge activity uses incremental loading and recorded trials. The household version below is our suggested adaptation, not a required procedure or a promise about which shape will win.

Before folding, invite a prediction: “Which shape do you think will keep holding the load, and why?” Accept a sketch, a pointing gesture, or a spoken explanation. Write the prediction separately from the results so it can change without becoming a mistake to hide.

Choose a small stopping point for the session. For example, reserve about twenty-five minutes and compare all three shapes once, then repeat if attention and materials allow. That time is a planning example, not a scientific rule. If there is only enough time for two shapes and a repeat, narrow the question accordingly.

Set up a comparison you can repeat

Gather paper from one pack, two stable equal-height book stacks or blocks, matching flat loading pieces, a pencil, and a recording page. Use a clear table, not its edge. An adult should manage small objects around children who put things in their mouths. Larger matching, lightweight pieces can replace coins; use the same choice throughout.

Prepare identical rectangles, perhaps twelve by twenty-five centimetres, with adult help for cutting if needed. These dimensions are merely a workable starting example. Make enough fresh rectangles for later trials; do not turn an already loaded flat bridge into the next folded bridge.

Place the supports with a gap shorter than the paper, leaving an equal amount resting at each end. Trace their positions on a spare mat so you can restore the gap if something moves. Reuse this setup for every test. Do not hold down, tape, or tuck the paper ends under the books.

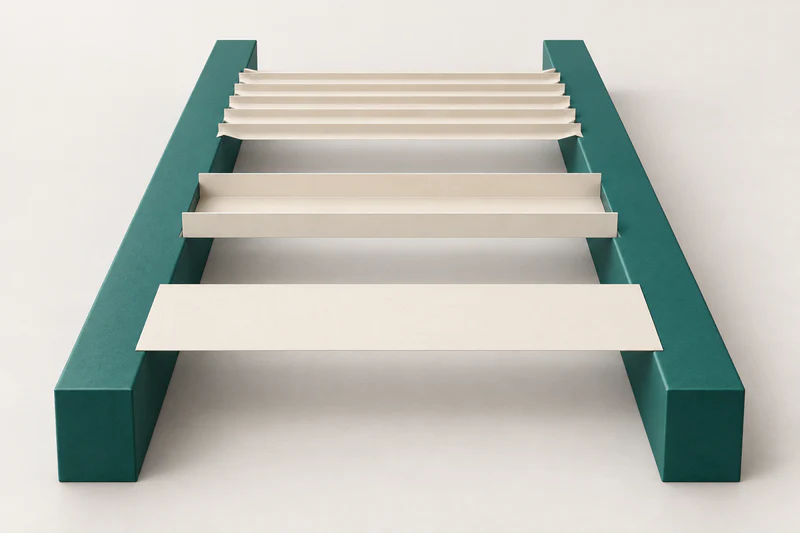

Make the three shapes from the same starting rectangle:

• Flat: leave it unfolded.
• Channel: turn both long edges upward by the same narrow amount, leaving a flat middle.
• Accordion: make alternating parallel folds along its length, forming several long ridges.

In the folded versions, each crease runs from one support toward the other. Folding across the span would shorten the bridge and change the comparison. Keep the paper’s original orientation consistent. The finished deck widths will differ; you are comparing whole shapes made from equal starting material, not isolating crease count alone.

Decide where the loads will go: centred halfway between the supports, with the same arrangement for each shape. If the pieces cannot sit in an equivalent position on every deck, choose a different common loading piece before collecting results. Avoid adding a special platform to only one shape.

Add loads gently and agree when to stop

Try one practice run to settle the method, then use fresh paper for the recorded attempt. Place one matching piece at a time rather than dropping it. Wait the same short interval after each addition, perhaps three seconds. Keep hands off the bridge while waiting, and avoid bumping the table.

Agree on a visible endpoint before testing. For this version, stop when the paper touches the table beneath the gap, slips off a support, or no longer holds the load. Record the last count held through the full waiting interval, plus how the attempt ended. If it fails on the first piece, the recorded supported count is zero.

A note might read: “Channel, first trial: four held; on the fifth, one end slipped.” That distinguishes a supported count from the count that caused the endpoint. It also preserves an observation that a bare number would lose.

Set a sensible load ceiling before starting so the investigation does not become a hunt for heavy objects. If the bridge reaches that ceiling without meeting the endpoint, record “held all available pieces” rather than inventing its maximum capacity. If a support moves or someone touches the paper, mark the attempt interrupted and redo it with fresh paper when possible.

One child can add pieces while an adult watches the endpoint, then they can exchange roles. Counting is useful, but there is no race. Ask what changes before the endpoint: a dip, a twist, a crease opening, or an end beginning to slide.

Repeat before choosing the story

An exciting first result is a starting point. For a manageable comparison, try two or three fresh bridges of each shape, rebuilding them as consistently as possible. Alternate the order on another round so the same shape does not always benefit from the most patient folding or placement.

The NGSS science and engineering practices discuss controlled variables and trial counts. Here, that becomes a family question: “What would we need to keep steady to trust our comparison?”

Use one row per attempt, recording shape, supported count, and a short observation. Older learners can add the support gap and loading arrangement at the top of the page. Younger learners can draw the deck and dictate the count.

Suppose, purely as an invented example, one shape holds four pieces, then six, then five. Keep all three results. Do not retain only six because it makes a better story, or erase four without an observed reason. A range can be more revealing than announcing a single winning number.

Look back at the paper and setup. Were the creases different? Was a load slightly off-centre? Did an end slide? Record a possible explanation as a possibility, not something the numbers proved. If two shapes have overlapping counts, “we could not clearly separate them today” is a useful conclusion.

Prefer “In our setup, this shape usually held more of these pieces” to “Folded paper is always stronger.” You tested a particular material, span, shape and loading method. The observation does not establish a universal winner or tell you how a full-size bridge should be built.

Let each learner contribute differently

A younger child might predict by pointing, count a few additions with adult help, and describe the paper as bending or slipping. An older learner might check the repeated conditions, organise results, and explain why one attempt is not enough. They can share the table without producing identical work.

Keep supervision with the adult. The oldest child does not need to manage the younger child’s materials, safety, or attention. Offer an optional role, not a hidden teaching assignment. If turn-taking becomes the main challenge, let one child observe briefly and give the other a separate testing slot.

For a learner who finds folding difficult, the adult can prepare the shapes while the child makes predictions and watches the tests. If writing is tiring, record a short spoken explanation or scribe their words. If counting distracts from observation, let the adult count while the learner watches for the agreed endpoint.

A child who dislikes the sudden fall can stop at a visible bend instead, provided you define that endpoint beforehand and apply it to every shape. Those counts describe this revised procedure; do not compare them directly with earlier collapse counts. Photographing the unchanged setup between attempts can also help someone who needs a visual reminder.

Close with evidence, not a bigger assignment

Gather the page and ask for three sentences: “We changed…”, “We kept…”, and “We noticed…”. Add one limit: “We would need more attempts to be more confident,” or “Our loads did not sit equally, so we should adjust the method.” A spoken answer is a complete ending.

Save one photo and the results if they are useful, then return the books and clear the scraps. A polished report, poster, and new materials order are optional, not the price of calling this science.

If your family wants a longer investigation later, the guide to planning projects that reach a finish can help set a boundary. For today, write one next question on the back: “What if we changed the gap but kept one shape?” Leave it there rather than beginning another variable halfway through this comparison.

Before returning to the idea, use a small check of prior understanding: ask what must stay the same and let the learner show you. The next useful step may be a clearer setup, not a more elaborate bridge.
